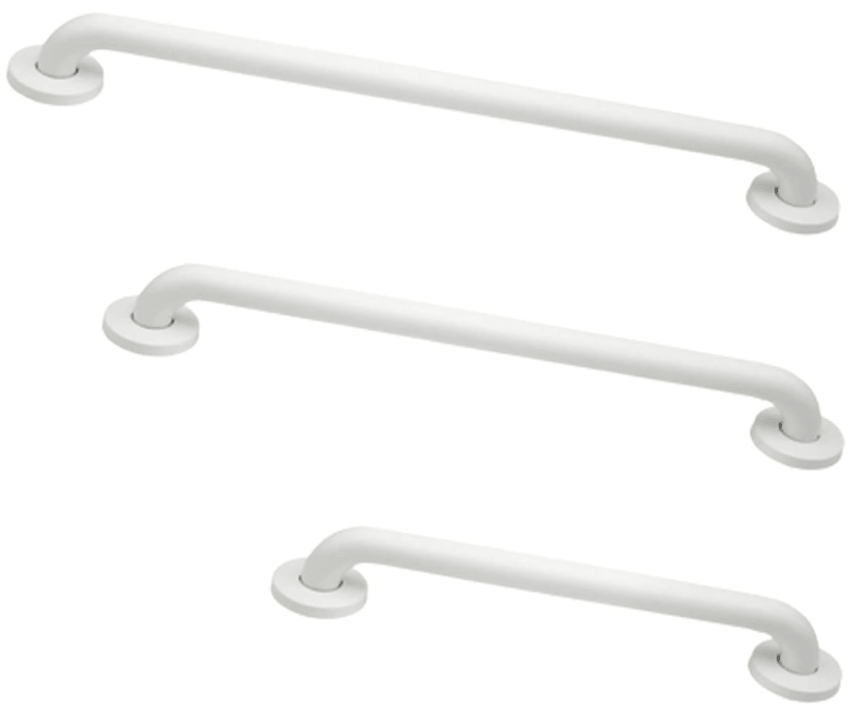

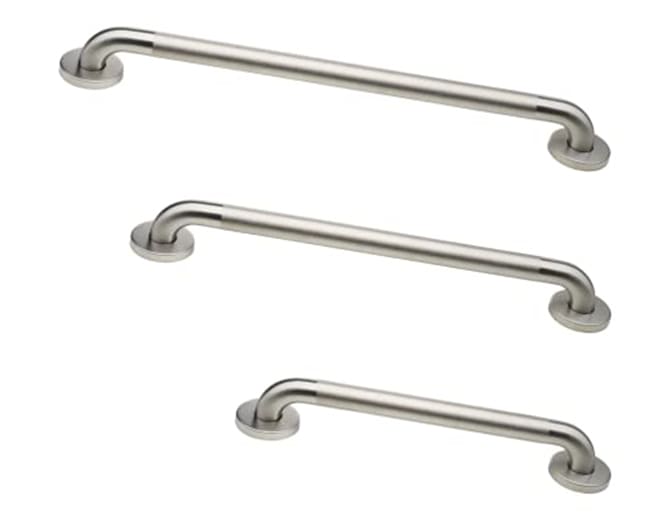

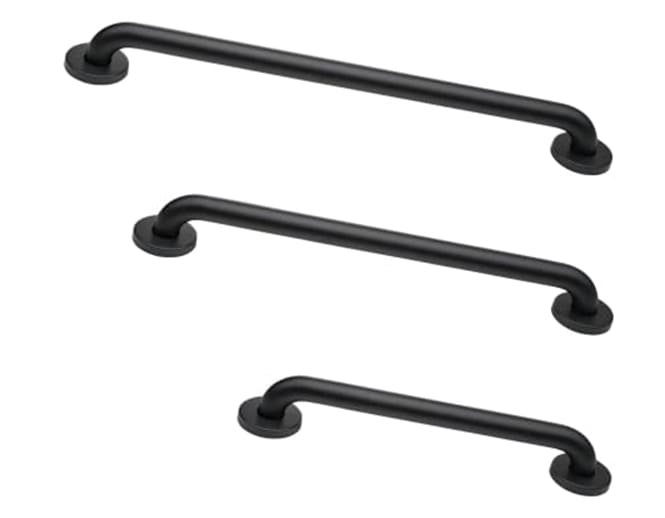

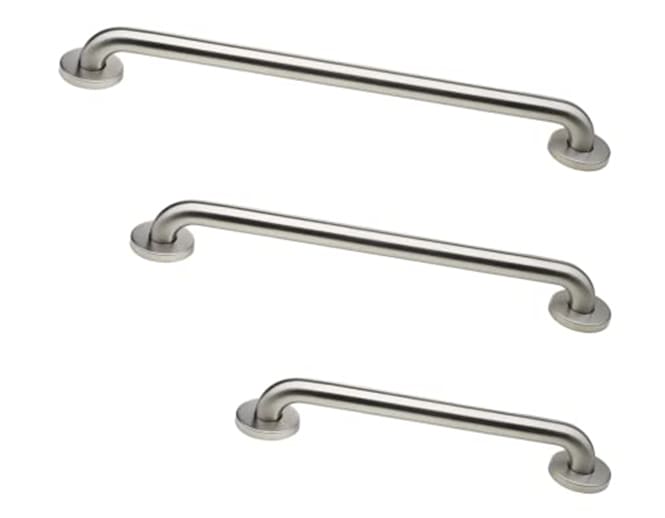

Grab Bar Bundle for Commercial Restroom ADA Compliance – 18″, 36″, 42″ – Pack of 3

Grab Bar Bundle for Commercial Restroom ADA Compliance – 18″, 36″, 42″ – Pack of 3

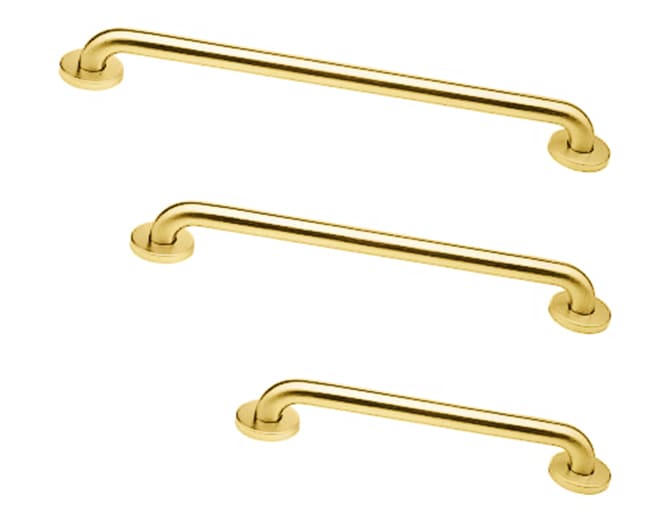

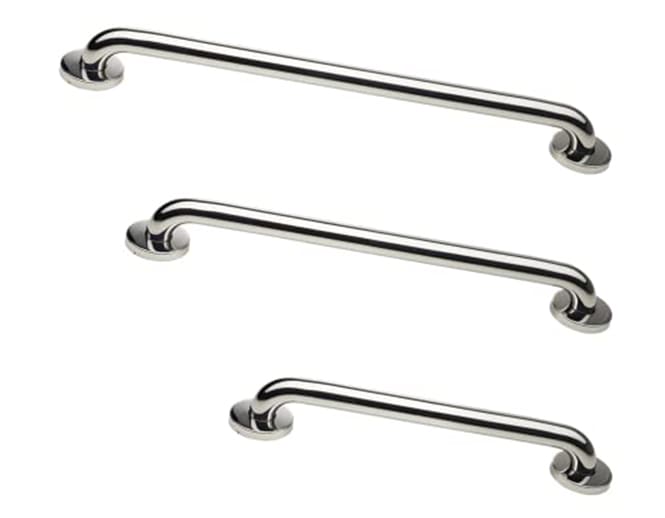

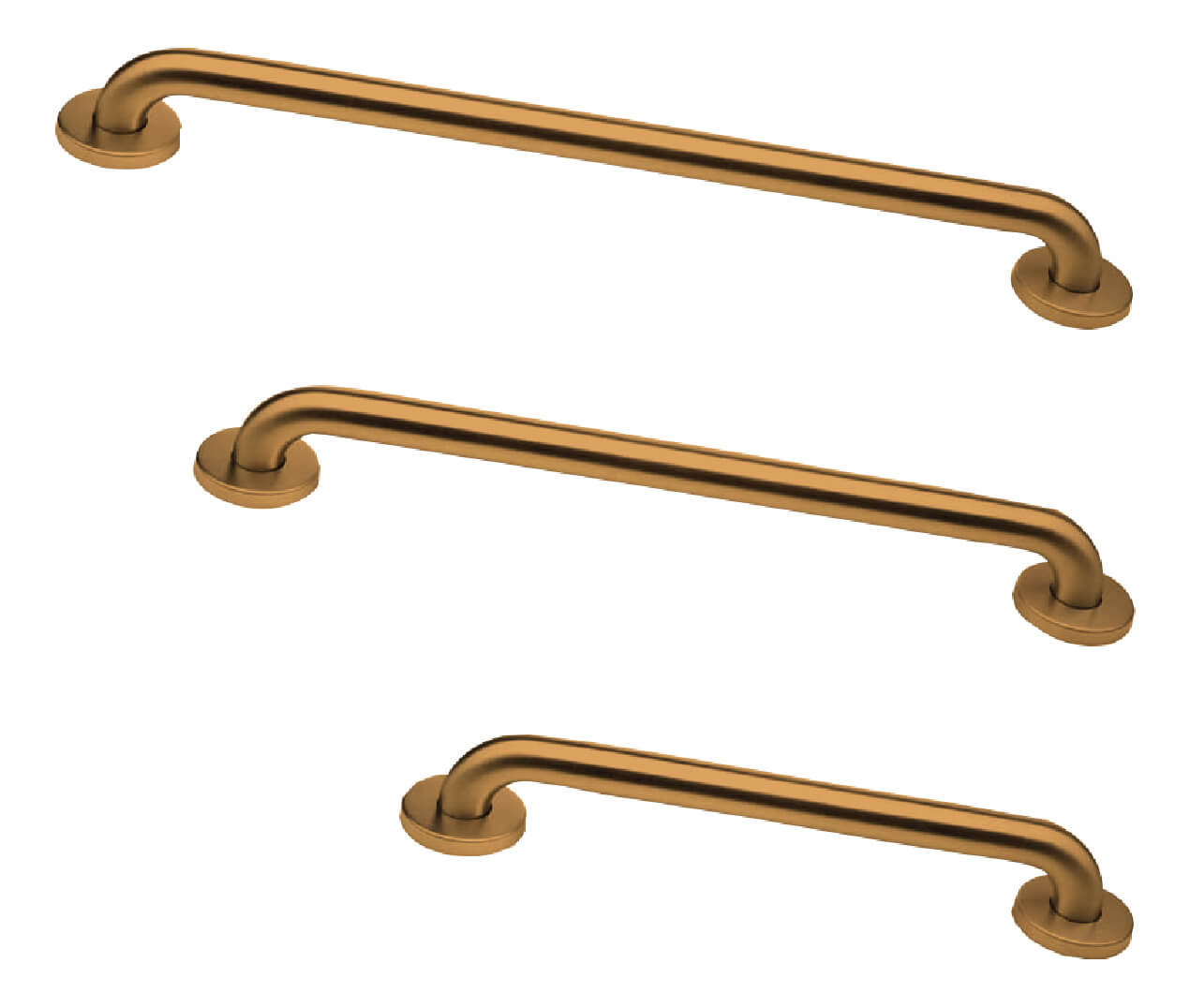

Includes:

• 1 x 18″ length 1 ½” diameter bar
• 1 x 36″ length 1 ½” diameter bar
• 1 x 42″ length 1 ½” diameter bar

Features:

• ♿ADA & ANSI Compliant: 1 ½” wall clearance and supports up to 500 lbs.

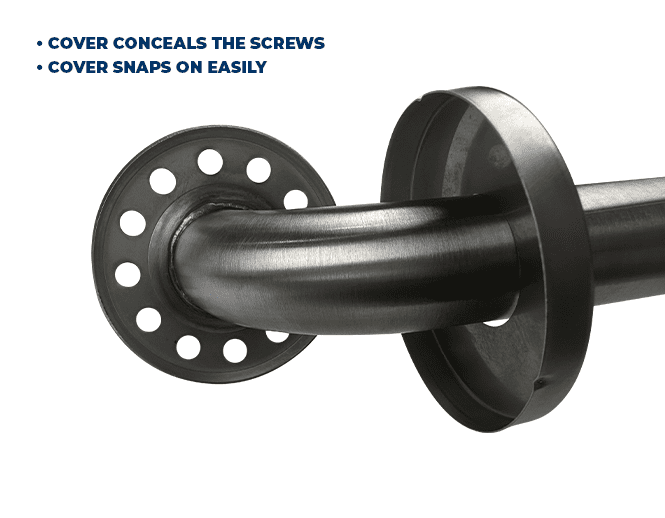

• Concealed screw design for a more decorative look.

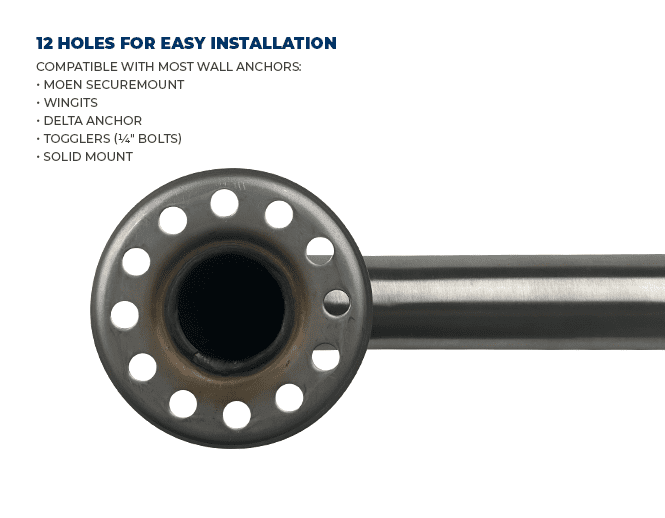

• Twist-on flange covers with flanges featuring multiple anchoring points to facilitate installation.
• Mounting hardware included.
• (Length is measured from centerline to centerline of each mounting flange. Add 3″ for overall length).

Construction:

• Tubing: 20 gauge #304 stainless steel.
• Flanges: 15 gauge #304 stainless steel with holes for attaching to wall.
• Covers: 22/24 gauge #304 stainless steel. Round 3 inch flange covers.

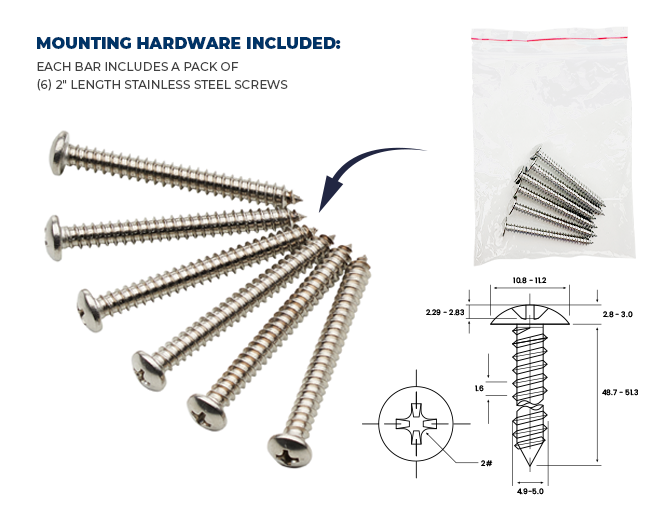

• Hardware: Includes (6) 2 inch stainless steel screws.

(Exceptions: 18 gauge tubing for all knurled finish bars and all 48″ length bars)

Technical Documents

Download Data Sheet PDF – 1.50″ Dia.
