RUiXU Lithi2-16 Battery Energy Storage IP65 outdoor | Self-Heating | 51.2V / 314Ah / 16kWh Capacity
$2,974.15
Not sure about sizing, electrical requirements or delivery? Ask CareWay
- Secure checkout
- Shipping & delivery details
- Return policy
The story
About this product
Expand your energy storage capabilities with the RUiXU Lithi2-16, a 16kWh lithium iron phosphate battery designed for residential and commercial solar systems. Featuring IP65 protection, integrated self-heating technology, and a rated lifespan of over 9,500 cycles, it supports indoor and outdoor energy storage applications.
Its integrated battery management system, touchscreen monitoring, and flexible installation options make it suitable for off-grid, hybrid, and grid-tied solar configurations.
Read more
The RUiXU Lithi2-16 combines substantial energy storage capacity with cold-weather functionality, intelligent battery monitoring, and flexible installation options.
Its integrated heating system, intelligent cell balancing, touchscreen interface, and expandable architecture make it adaptable to residential and commercial solar storage applications.

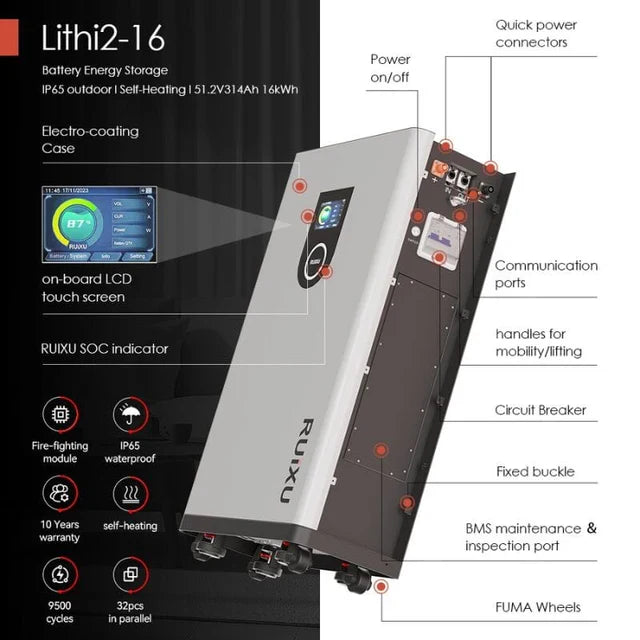

Key features
-
16kWh Energy Capacity – Provides 314Ah at 51.2V nominal voltage.
-
Self-Heating Technology – Integrated 480W heating system automatically activates below 41°F.
-
9,500+ Cycle Lifespan – Rated for at least 9,500 cycles at 80% depth of discharge.
-
IP65 Protection – Designed for indoor and outdoor installation.
-
Advanced Battery Management – Monitors voltage, current, and temperature in real time.
-
5-Inch LCD Touchscreen – Displays battery status and operating information.
-

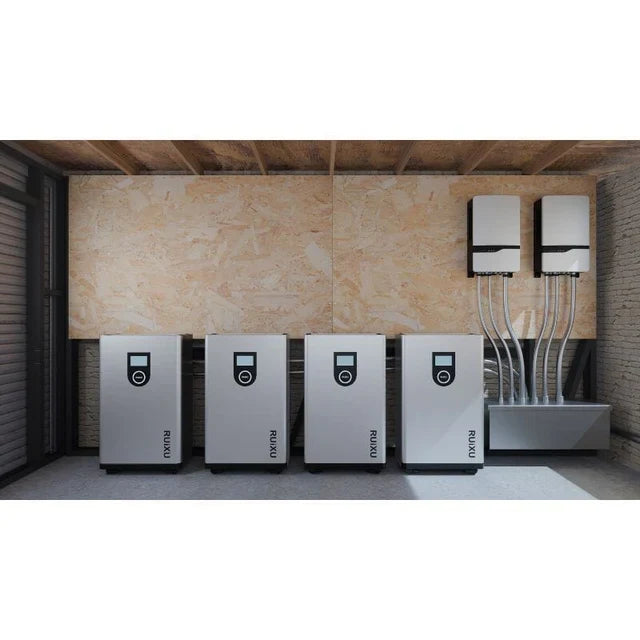

Expandable Storage – Supports parallel configurations for larger energy storage systems.
-
Inverter Compatibility – Connects with compatible inverter brands using RS485 or CAN communication.
-

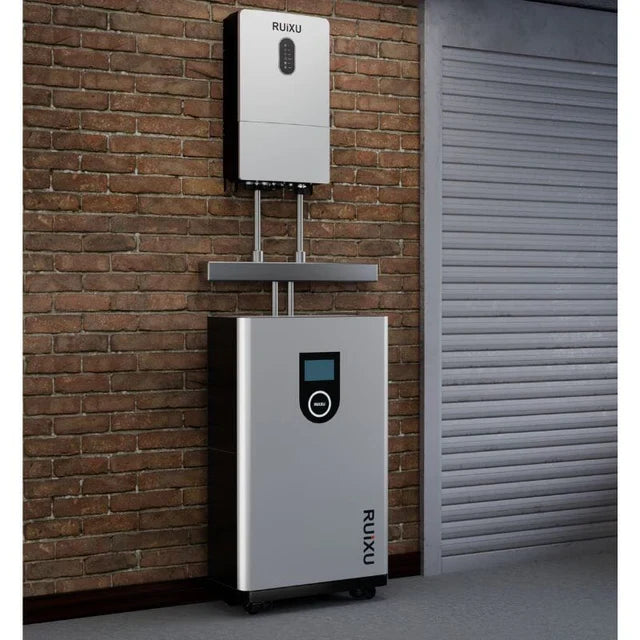

Flexible Installation – Includes concealed wheels and wall-mount brackets.
-
Integrated Fire Suppression – Features a gas aerosol fire suppression system.
Important details
- Nominal Capacity
- 314Ah

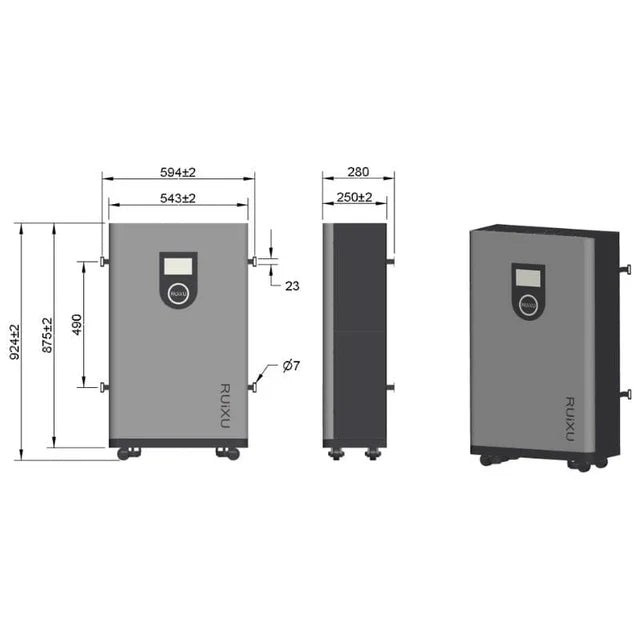

- Dimensions
- 36.38" × 21.38" × 9.84"
- Weight
- 302 lb.
- Nominal Voltage
- 51.2V
- Battery Chemistry
- Lithium Iron Phosphate (LiFePO4)
View full specifications
|
Feature |
Details |
|---|---|
|
Brand |
RUiXU |
|
Model |
Lithi2-16 |
|
Battery Chemistry |
Lithium Iron Phosphate (LiFePO4) |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
314Ah |
|
Energy Capacity |
16kWh |
|
Cycle Life |
≥9,500 Cycles at 80% DOD |
|
Operating Voltage |
43.2–58.4V |
|
Self-Heating System |
480W |
|
Communication |
RS485 / CAN |
|
Parallel Expansion |
Up to 32 Units |
|
Nominal Charging Current |
200A (140A Recommended) |
|
Nominal Discharging Current |
200A (140A Recommended) |
|
Maximum Discharging Current |
240A |
|
Charging Temperature |
-13°F to 131°F |
|
Discharging Temperature |
-4°F to 131°F |
|
Storage Temperature |
-4°F to 113°F |
|
Protection Rating |
IP65 |
|
Dimensions |
36.38" × 21.38" × 9.84" |
|
Weight |
302 lb. |
|
Installation |
Wall or Floor Mount |
Good to know
Who it's for
Ideal for homeowners and commercial customers seeking expandable lithium battery storage for compatible solar energy systems, including off-grid, hybrid, and grid-tied applications.
Shipping & delivery
Returns
More about this product
What to Expect When Ordering
The battery includes concealed wheels, wall-mount brackets, and quick-plug terminals with anti-loosening protection.
Before ordering, confirm inverter compatibility and installation requirements.
Supplier clarification: The product description advertises expansion to 257kWh, while the specifications list support for up to 32 parallel units. Confirm the supported system capacity before publishing.
